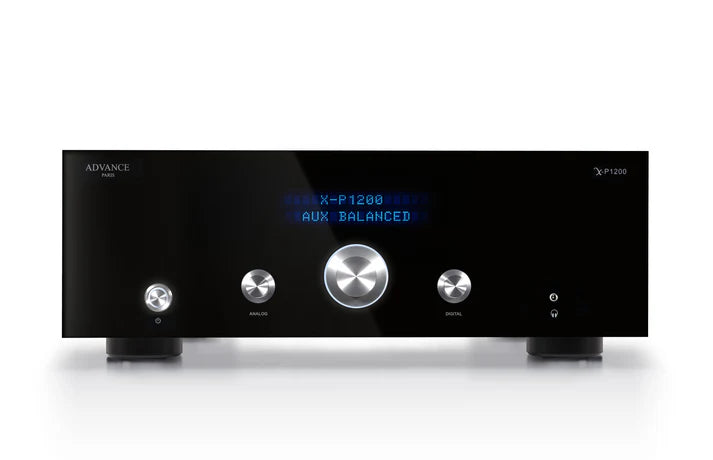

Advance Paris X-P1200 Classic Preamplifier

Advance Paris X-P1200 Classic Preamplifier

Regular price $4,999.00 USD
Regular price Sale price $4,999.00 USD
Sale Sold out

Respect for your sources

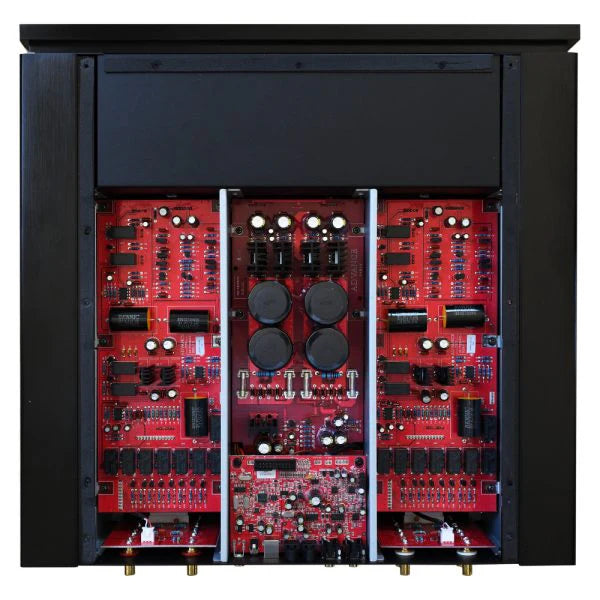

The X-P1200 preamplifier is the showcase of our know-how. Reference stereo preamplifier, it is in fact composed of two mono preamplifiers assembled in a single compartmentalized box to ensure complete isolation of the various circuits and preamplification stages.

This design ensures better channel separation (crosstalk) and therefore a better stereo effect.

Not only does the X-P1200 have independent right and left channel preamp circuits, but so do their power supplies that we have chosen to make them totally independent through the use of two transformers.

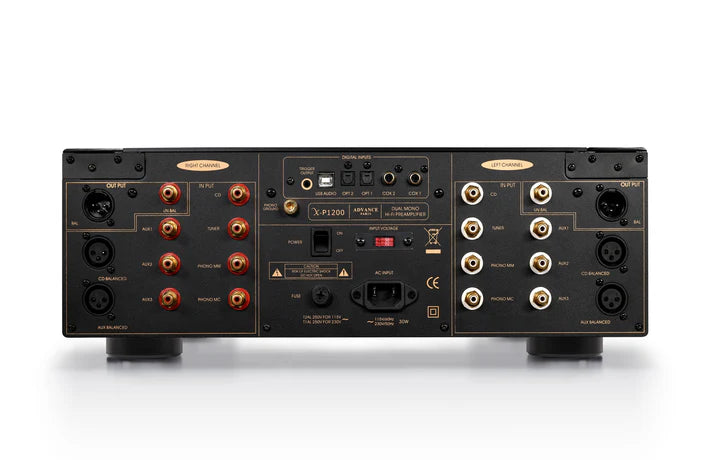

The X-P1200 is equipped with 9 analog inputs including 2 Balanced XLR inputs., A USB B input (XMOS), 2 coaxial digital inputs and 2 digital inputs. On the output side, you will have the choice between a balanced XLR type output  or unbalanced RCA type. Everything has been thought out to make this preamp the benchmark for  the best audio systems: mains input with choke filtering and capacitors, two toroidal transformers with high current capacity, filtering composed of 4 capacitors 12000uF / 150V.

The regulation is done by integrated circuits mounted on heat sinks.  Concerning the switching of the inputs/outputs, it is done by relay without loss of contact. The symmetrization of the cinch inputs and the desymmetrization is done using quality operational amplifiers of the Burr Brown type.

The processing of digital sources is entrusted to an Analog Device AD-1955 converter. This converter is particularly suitable for high end and SACD applications. The quality of the digital to analog decoding is of very high level with a signal to noise ratio of 123 dB and top quality audio. It is comprised of a multi-bit sigmadelta modulator, high-performance digital interpolation filters, and continuous-time differential current output DAC.

The playback of audio files from a PC or MAC computer is entrusted to XMOS, a reference solution in the field of quality audio reproduction.

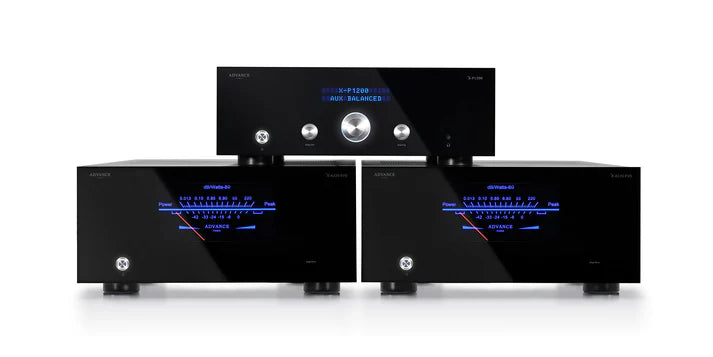

Pairing the X-P1200 with two X-A1200 mono units will yield a truly exceptional system.

Specifications

Output level

10.5 +/-0.5dB

Frequency response

10Hz-150kHz

Distortion

<0,01%

Signal to noise ratio

≥ 110 dB

Channel separation

≥ 100 dB

Imped. unbalanced input

23KΩ

Imped. balanced input

35KΩ

IN LEVEL (CD/AUX)

< 500mV

Phono MM/MC input level

48dB/64dB

audio receiver

CS8416

AC input

110-230V

consumption max.

≤ 30W

Transformer

2

Width

440 mm

Height

155 mm

Depth

430 mm

Net weight

14,2 kg

Gross weight

15,6 kg

DAC

AD1955
