Gold Note Pianosa
Gold Note Pianosa
THE ATTENTION TO THE SMALLEST DETAILS AWAKENS NEW MUSICAL SENSATIONS
OUTSTANDING MATERIALS
The Pianosa, just like the Mediterraneo and the Giglio, offers a unique combination of high-quality materials and refined technical solutions to achieve the purest audio execution.
The Pianosa follows the sonic philosophy experimented with the full range of GN turntables, taking advantage of the experience and knowledge we developed working on innovative shapes and quality materials.

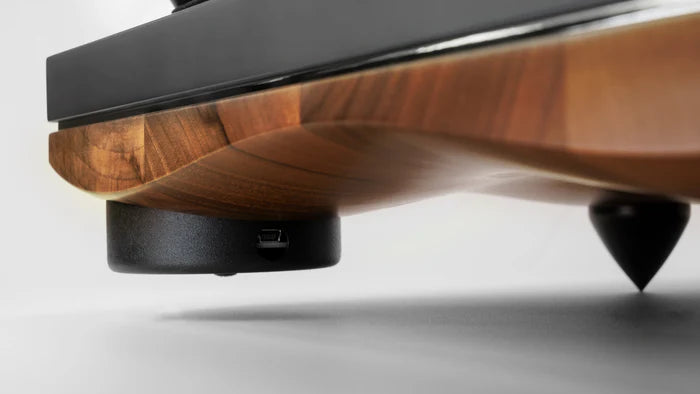

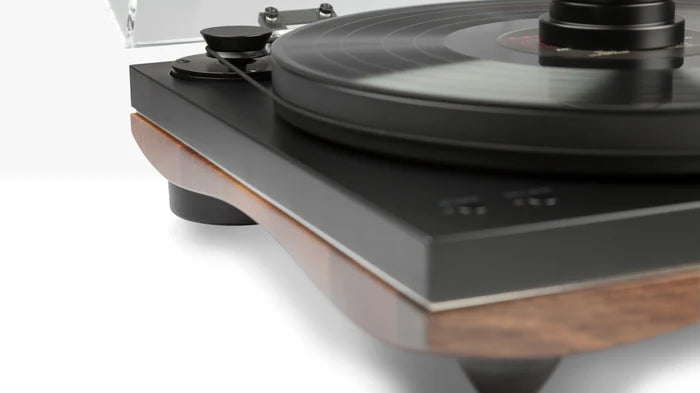

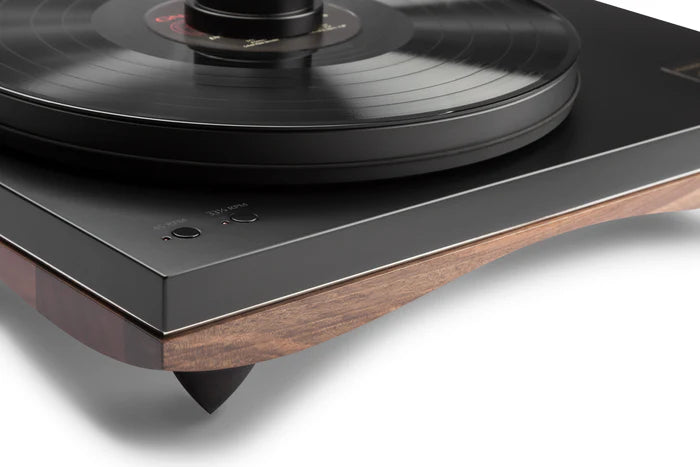

The Catenary curved plinth, made of Italian walnut hardwood or black lacquered MDF, is handcrafted by the best Italian wood-making artisans who carefully treat every single piece of selected wood, shaping the core of the turntable.
The wooden plinth is coupled with a 20mm thick MDF plinth and reinforced with a 3mm stainless steel plate to provide incredible rigidity.
The result is an audio performance that exceeds any expectations.
We use eco-friendly protective varnishes for all our walnut turntables.
OUTSTANDING SOUND
The electronics that control the power driving the 12V synchronous motor and the specific materials chosen for the Pianosa come directly from the flagship models. It results in a zero vibrations device and an improved torque delivering the greatest dynamic and the finest detail.
The Pianosa features our high-precision platter bearing/spindle design with the lowest coupling tolerance available.
The rectified spindle is made of hardened steel and it precisely matches the chromed ball bearing, reaching the perfect low noise rotational consistency.
TECHNICAL SPECIFICATIONS
WOW & FLUTTER
0,1%
RUMBLE
-77dB
SPEED
33⅓rpm and 45rpm ±0,1%

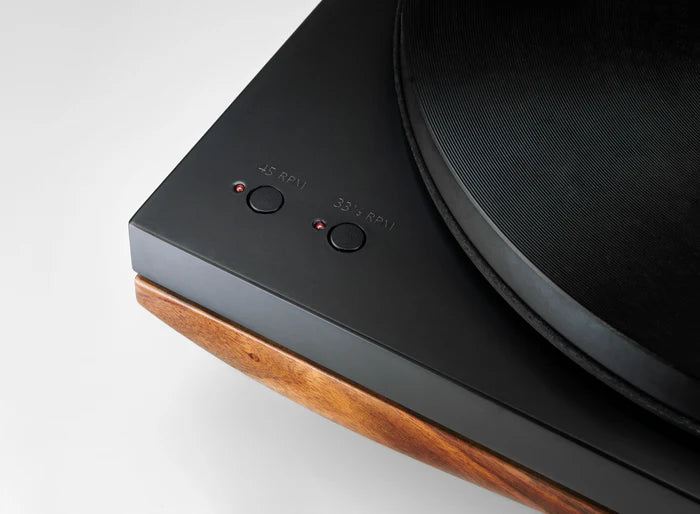

SPEED CHANGING
Electronic with fine pitch control
TRANSMISSION
70 shores rectified NBR belt
MOTOR
high torque 12V synchronous
PLATTER
23mm Dampened Poly-Vinyl
PLATTER SPINDLE
Split-Spindle™ clamping design
PLATTER BEARING
Chromed Steel 5mm ball bearing
TONEARM
Gold Note B-5.1
DUST COVER
Transparent with hinges
POWER CONSUMPTION
max 27W
POWER SUPPLY
18V output
100-240V / 50-60Hz
DIMENSIONS
425W | 170H | 360D mm
550W | 480H | 480D mm – boxed
WEIGHT
Kg. 13.5 – net
Kg. 18 – boxed
ITALIAN WALNUT
With black lacquered MDF upper plinth, black anodized aluminium metal parts and black platter
BLACK LACQUERED MDF
With black lacquered MDF upper plinth, black anodized aluminium metal parts and black platter
EXTERNAL POWER SUPPLY
PST-10 external inductive power supply for turntables
TONEARM
