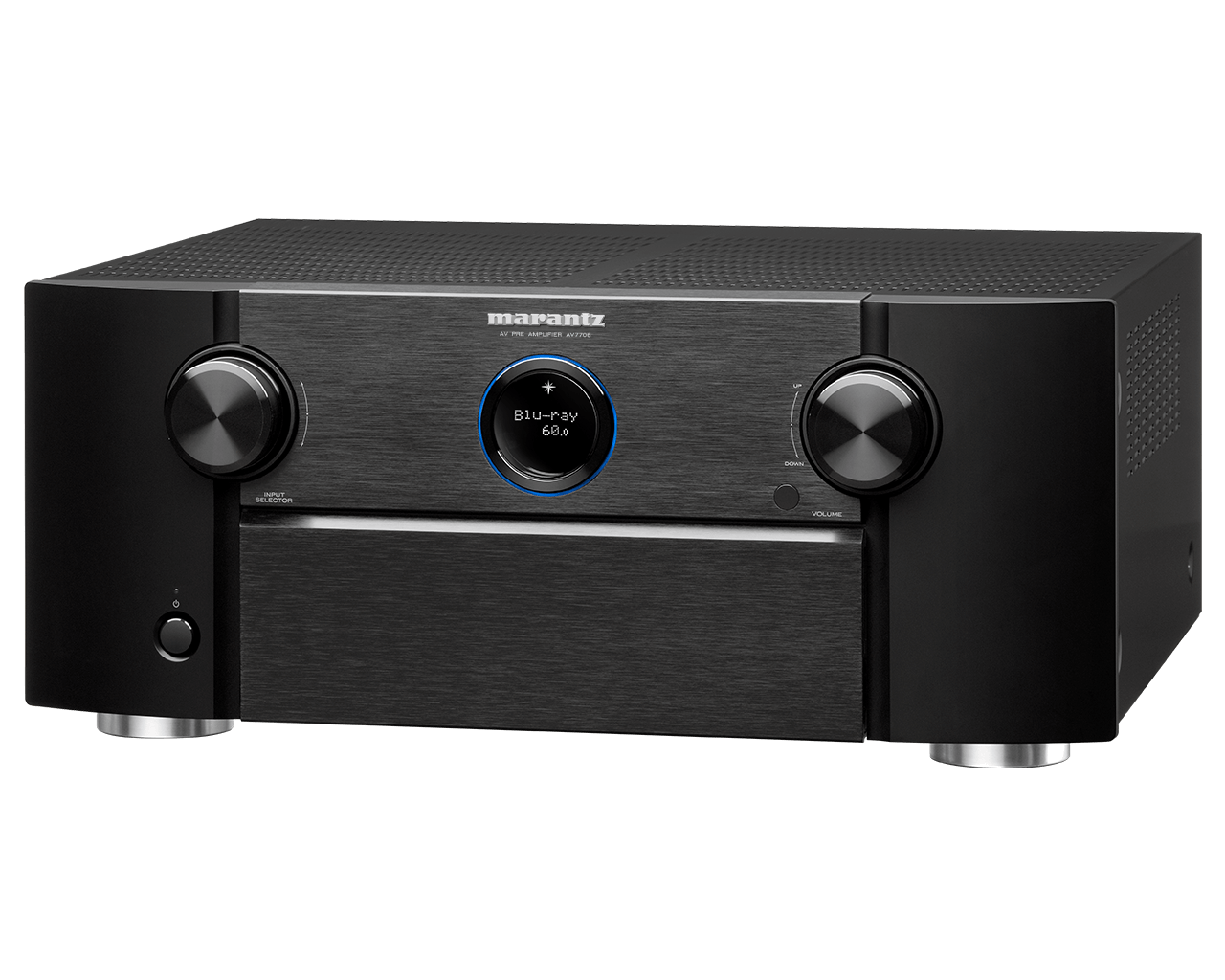

Marantz AV7706 - 11.2Ch 8K Ultra HD AV Surround Pre-Amplifier with HEOS
Marantz AV7706 - 11.2Ch 8K Ultra HD AV Surround Pre-Amplifier with HEOS
Couldn't load pickup availability
Advanced 11.2 channel pre-amplifier
Experience a versatile home theater setup with the new Marantz AV7706 processor/pre-amplifier. Featuring 11.2 channel XLR and RCA pre-outs, the AV7706 is built with masterful-quality external power amplification for the most demanding active speakers. Enjoy the audiophile sound you expect from Marantz combined with the latest video and audio decoding, as well as voice control with your favorite voice assistants.

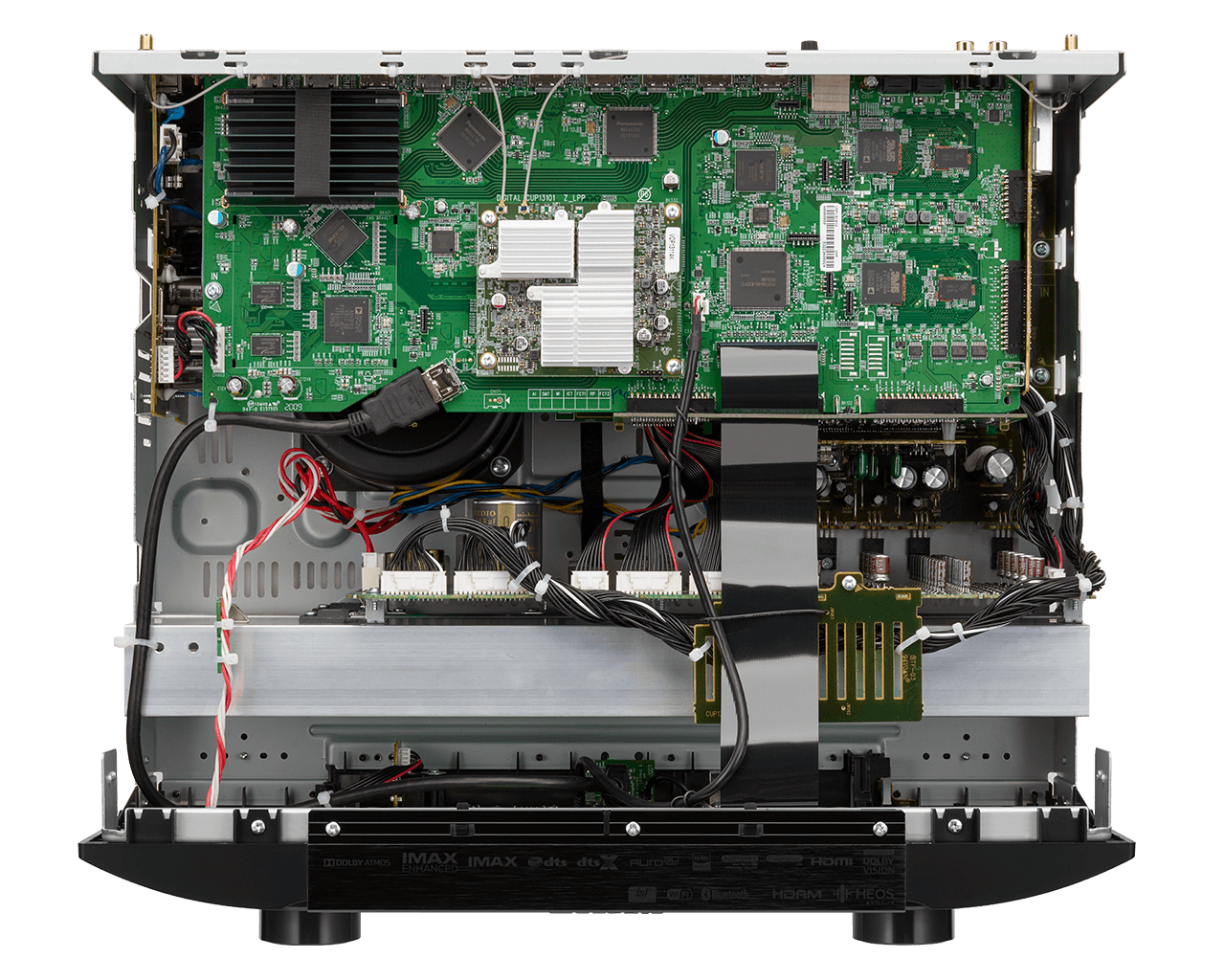

Sophisticated engineering
With 11.2 channel pre-outs on both conventional RCA sockets and balanced XLRs, the AV7706 is designed to work alongside high-quality external power amplifiers like the Marantz MM8077, MM7055, and MM7025.
Advanced 8K HDMI connectivity with eARC support
The new Marantz AV7706 includes 8 HDMI inputs and 3 outputs for all your favorite sources. One dedicated 8K input supports 8K/60Hz or 4K/120Hz pass-through capability, 4:4:4 Pure Color sub-sampling, Dolby Vision, HLG, HDR10, 21:9 video, 3D, and BT.2020 pass-through while the latest HDCP 2.3 copy protection standard is supported on all HDMI inputs.
Full 3D audio support
Immerse yourself in multi-dimensional audio with the latest surround formats, including Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™, IMAX® Enhanced, and Auro-3D®.
Marantz HDAM and current feedback topology
The AV7706 features exclusive Marantz Hyper Dynamic Amplifier Module (HDAM) technology that provide ultra-fast slew rate, true wideband performance, and maximum dynamic range for optimum sound quality.
The next chapter in movie entertainment
The new AV7706 offers the highest-quality, crystal-clear viewing experience. Enjoy your movies with 8K/60Hz pass-through or upscaling, as well the latest in HDMI technology like Dynamic HDR and Quick Media Switching (QMS), which is used in movies to eliminate video delay.
Technical Specifications
Multichannel Surround
| DTS Neo:X / DTS Neural:X | No / Yes |
| DTS Virtual:X | Yes |
| IMAX Enhanced | Yes |
| Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization | Yes / Yes / Yes |
| Dolby TrueHD / Dolby Atmos / Dolby Surround | No / Yes |
| Auro 3D | Yes |
| Audyssey DSX | No |
| Multichannel Stereo | Yes |
| Max Number of Processing (Preamp) Channels | 11.2 |
Sound Enhancements
| Copper Plated Chassis | No |
| Power Transformer: Toroidal / EI | No / Yes |
| Current Feedback Topology | Yes |
| Hyper Dynamic Amplifier Modules (HDAM) | Yes |
| Pure Direct | Yes |
| Gold plated RCA terminals | Yes |
| Clock Jitter Reducer | Yes |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Compressed Audio Enhancer: MDAX2 | Yes |
Network
| HEOS Multi-room and Streaming | Yes |
| Network Audio Sharing | Yes |
| Lossy formats MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless Formats: FLAC / ALAC / WAV | Yes / Yes / Yes |
| Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 | Yes / Yes / Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| FLAC HD 192/24 | Yes |
| WAV 192/24 | Yes |
| ALAC 192/24 | Yes |
| Gapless Playback | Yes (FLAC, WAV ,ALAC ,DSD) |
| Internet radio | Yes (TuneIn) |
| Other Streaming Services * | Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix |
| Compatible with Remote APP for Smart Phones | Marantz 2016 AVR RemYeste |
| Compatible with Remote APP for Tablets | Android / iOS / Amazon Kindle |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
HDMI
| HDMI Inputs: Back / Front | 7 / 1 |
| HDMI Outputs: Main / Zone | 2 / 1 |
| Video Conversion Analog -> HDMI | Yes |
| Analog to HDMI Scaling | 480i/576i up to 8K 60/50 |
| HDMI to HDMI Scaling | up to 8K 60/50 |
| GUI Overlay on HDMI | Yes |
| Enhanced ARC | Yes |
| 3D Signal Pass-Through | Yes |
| 4K Signal Pass-Through / Scaling / GUI Overlay | Yes / Yes / Yes |
| HDMI Pass-Through in Standby Mode | Yes |
| Picture Adjust / Noise Reduction | Yes / Yes |
| CEC | Yes |
| DSD Audio Capability | Yes |
| Audio Return Channel | Yes |
| Auto LipSync | Yes |
Multi-Room / CI
| HEOS Multi-Room Integrated | Yes |
| HEOS Link Compatibility: IR/ IP | Yes / Yes |
| Multi-Room Zones | 3 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | Yes (2ch) / Yes (2ch) / Yes / Yes |
| Zone Audio Output: Speaker / Preout | No / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| IP Control / RS232 Control / Web Control / App Control | Yes / Yes /Yes / Yes |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Output | 2 |
| HDMI Diagnostics | Yes |
Others
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 |
| FL Display | 2 lines + port hole |
| Graphic User Interface - GUI | Advanced |
| ISF Certification | Yes |
| GUI Languages | 3 |
| Smart Select | Yes |
| Firmware Update by Network USB | Yes / Yes |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | No |
| Auto Power off | Yes |
| Sleep Timer | Yes |

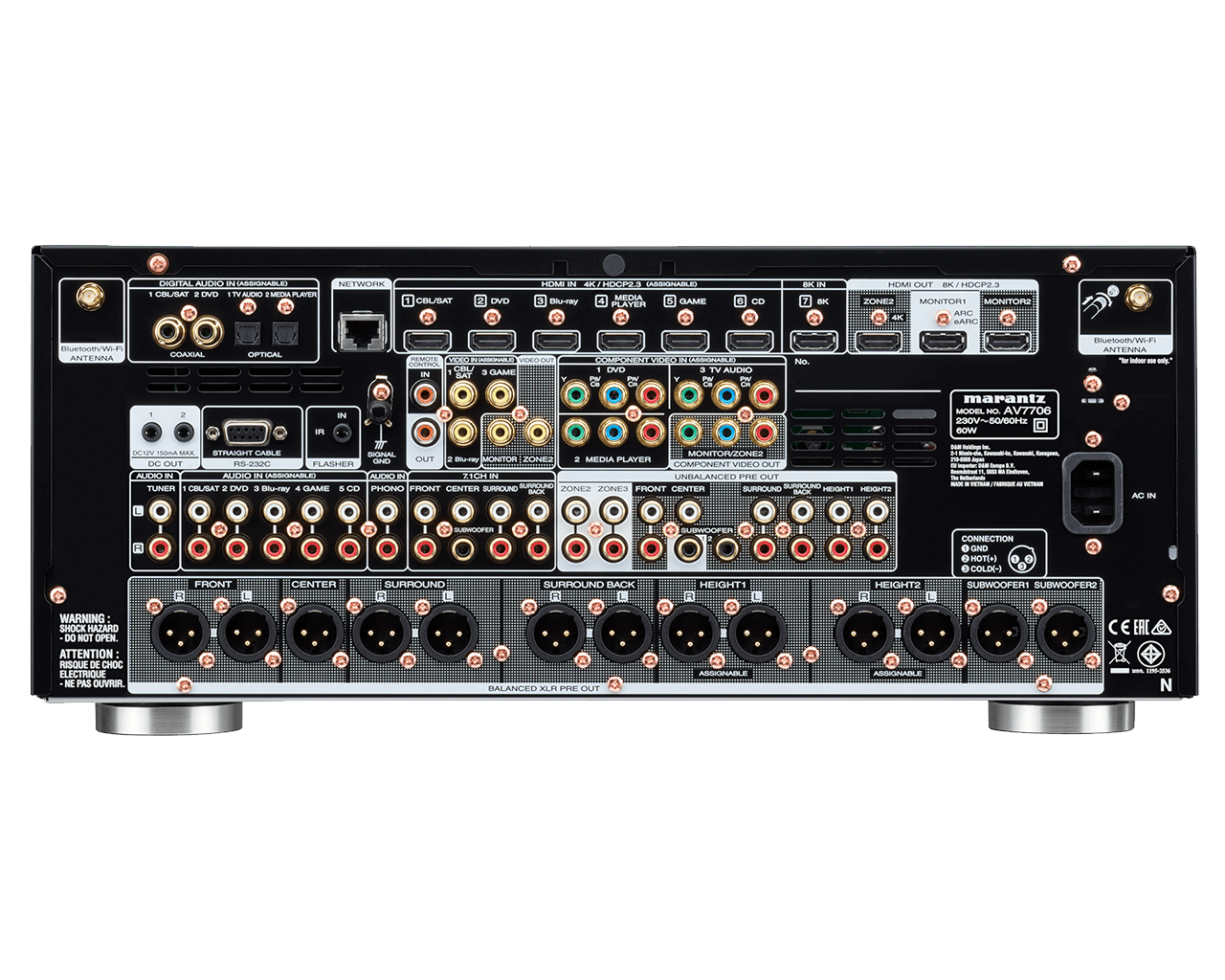

Inputs/Outputs
| Composite In / Out | 3+1 / 2 |
| Component In / Out | 3 / 1 |
| HDMI In / Out | 7+1 / 3 |
| Multi-Room Video Out: Video / HDMI | Yes / Yes |
| Analog In / Out | 5+1 / No |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-Room Out: Analog / Digital | 2 / No |
| Multichannel Pre Out | Yes (11.2 RCA & 11.2 XLR) |
| Subwoofer Out | 2 (independant) |
| 7.1 Multichannel Input | Yes |
| Speaker A B | assignable pre out |
| Bi-Amp Drive | assignable pre out |
| Multi-Room Speaker Terminal | pre out |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | Yes / Yes / No / Yes / Yes |
| USB Audio / Made for iPod® / Made for iPhone® | Yes / No / No |
| AM/FM Tuner | Yes |
General
| Metal Front Panel | Yes |

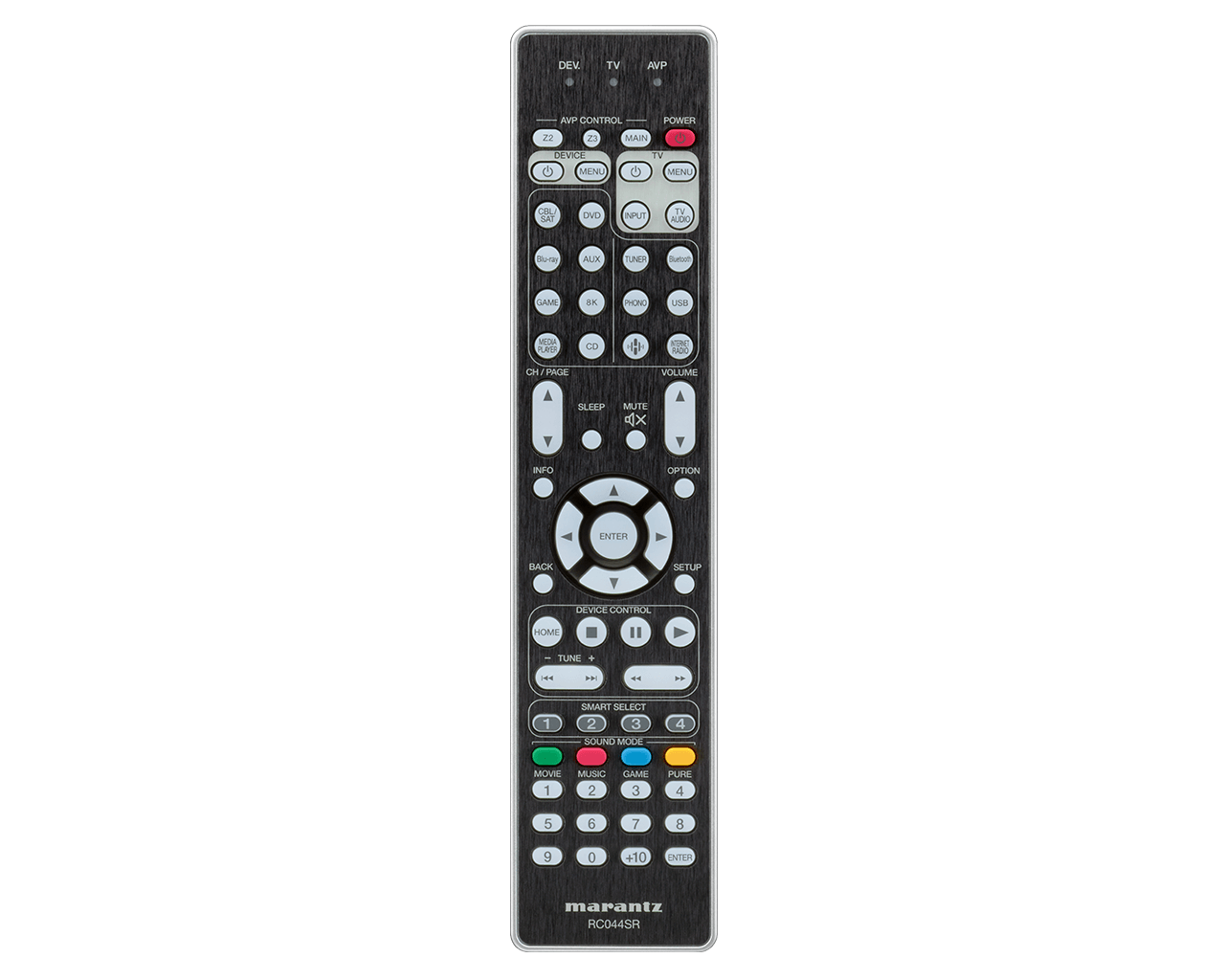

| System Remote Control | RC044SR |
| Pre-Programmed / Learnable / LCD Display | Yes / No / No |
| Power Consumption in W | 60 |
| Power Consumption No-Sound (ECO on/off) in W | No |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | 3.5 |
| Network Control On Consumption in W | TBD |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in inches Antenna:Vertical :(W x D x H) in inches W/o Antenna:(W x D x H) in inches |
17.3 x 16.2 x 7.3 ( 17.3 x 16.2 x 9.7 ) 【 17.3 x 15.8 x 7.3 】 |
| Weight in lbs. | 22.9 (TBD) |
