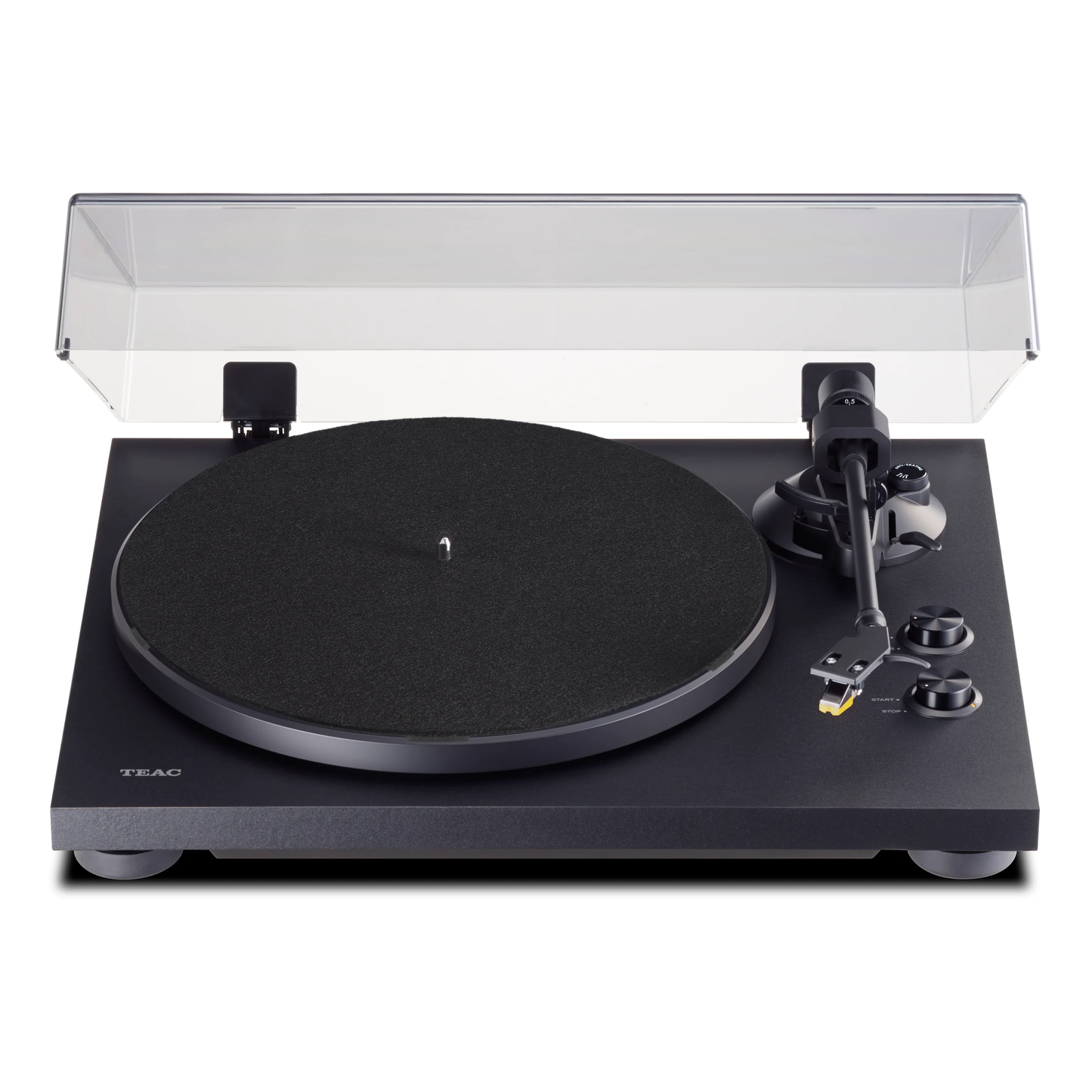

TEAC TN-280BT-A3 Bluetooth Turntable
TEAC TN-280BT-A3 Bluetooth Turntable
Couldn't load pickup availability

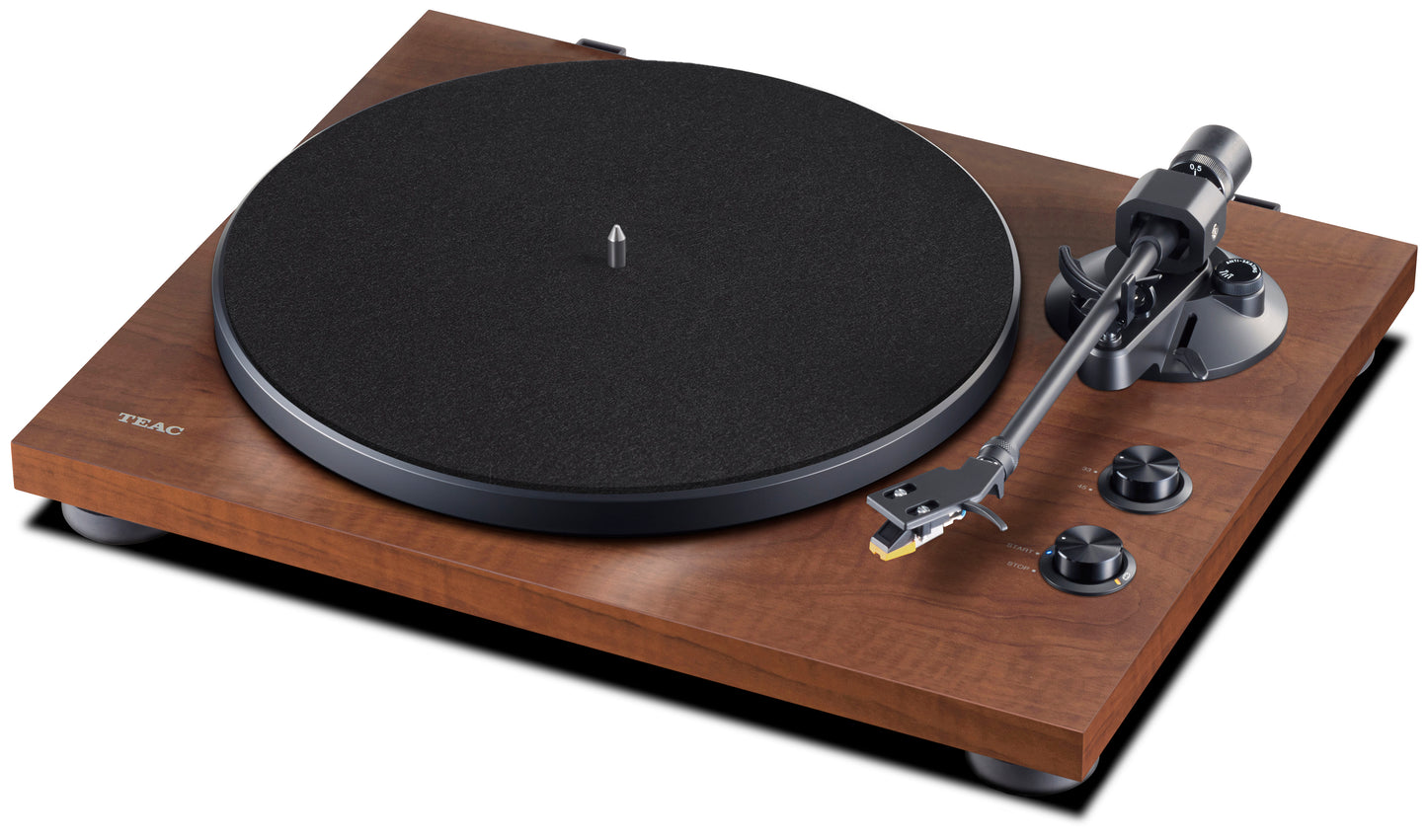

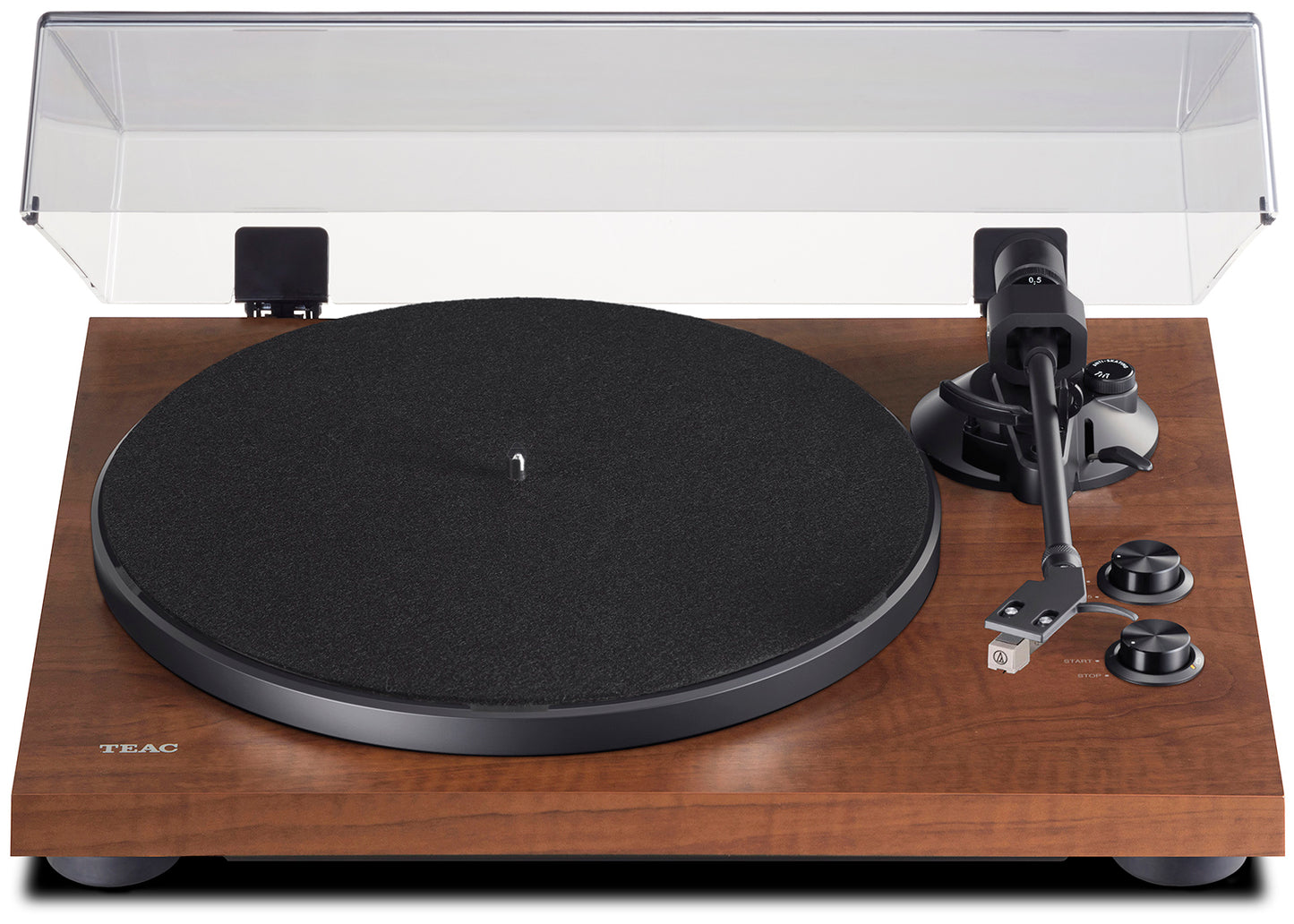

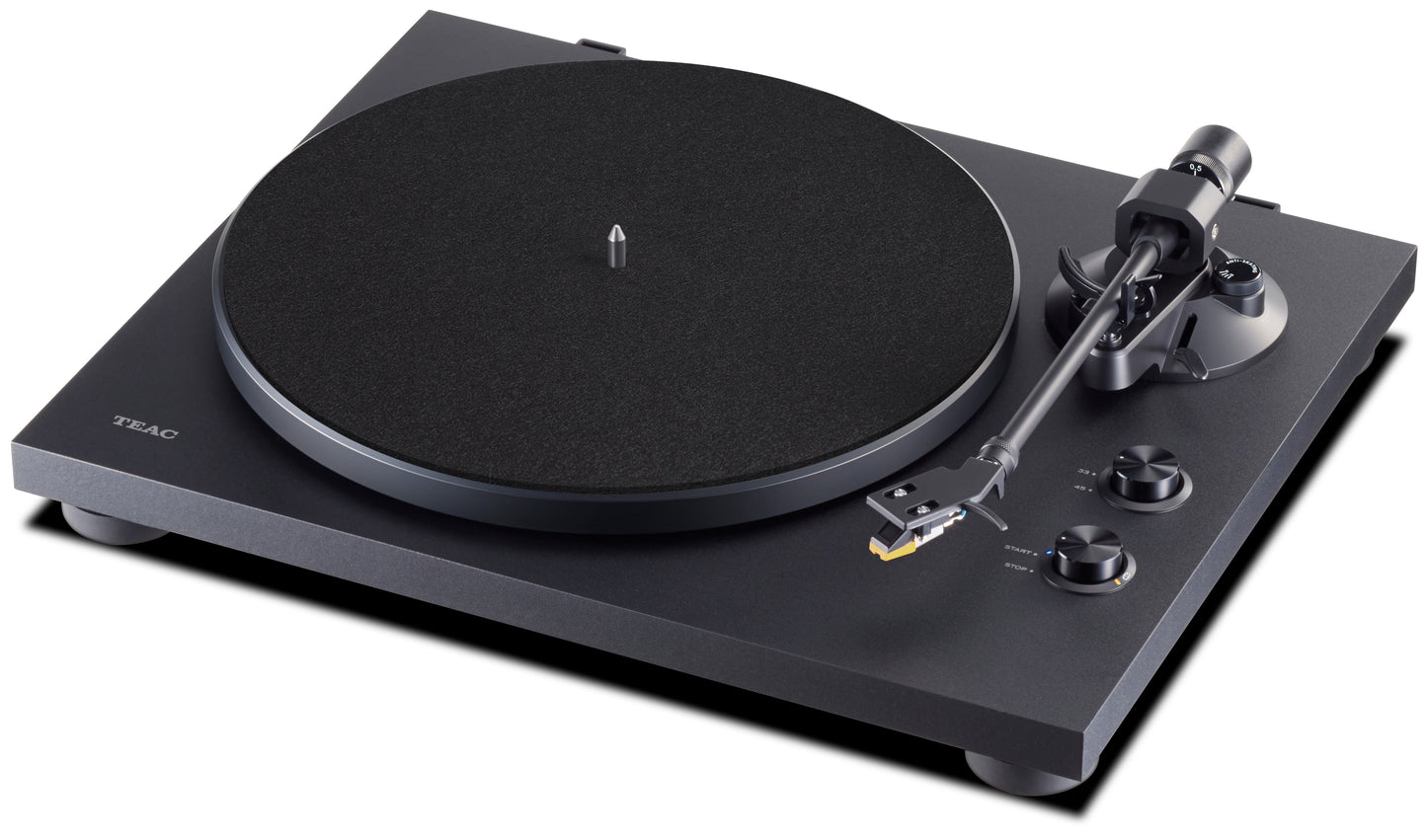

Our favourite wireless turntable, now available in both Black and Walnut.
Offering a best-in-class Bluetooth® wireless connection, the TN-280BT-A3 turntable offers a versatile option for the discerning audiophile.
HEAR EVERY NUANCE AND NOTE - WIRELESSLY
The TN-280BT-A3 turntable offers extra versatility with a best-in-class Bluetooth® wireless connection. Simply connect the turntable to your wireless speakers of choice and drop the needle on your favorite records.
The TN-280BT-A3 also features a built-in Phono EQ amplifier for line output, allowing you to connect to almost any sound system regardless of the type of inputs.
The belt-drive motor on the TN-280BT-A3 reduces vibration for dynamic, more accurate sound than direct-drive turntables, while an aluminum die-cast platter and anti-skating system provide a solid foundation for great-sounding playback. The high-performance, upgradable MM cartridge AT3600L from Audio-Technica captures every detail, and the static-balanced straight tone-arm ensures clear sound. It’s all housed in a handsome case in black veneer.

CHOOSE YOUR CONNECTION

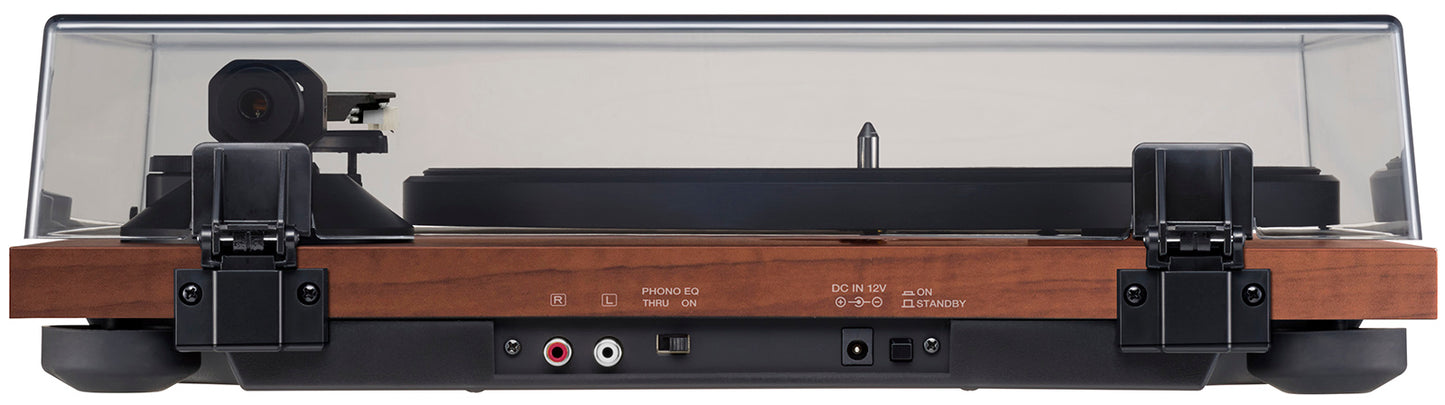

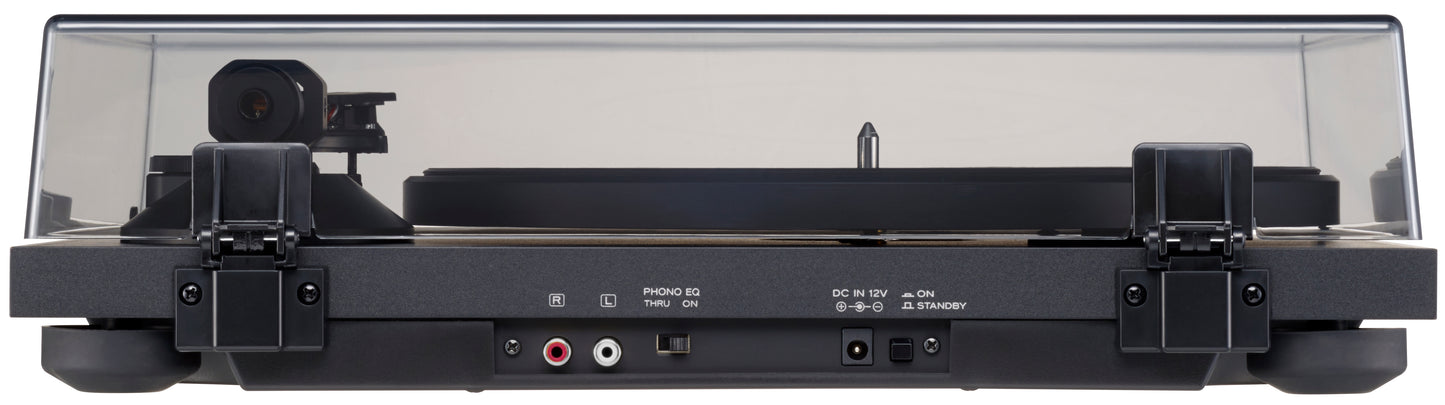

The TN-280BT-A3 delivers sound wirelessly via a built-in Bluetooth® transmitter, in addition to conventional RCA output in analog Line or Phono format. The pairing button is located at the right-front side of the cabinet, and the pairing indicator tells you the speakers/headphone is successfully connected.
LISTENING MADE EASY
Unlike other turntable units, the TN-280BT-A3 provides you an easy way to experience your vinyl via Bluetooth® wireless technology.
If you already have Bluetooth-enable speakers or headphones for your iPhone/Android phone, all you have to do is to install the TN-280BT-A3 in your room – no pricy hi-fi system and complicated wiring are needed. The connection is frustration-free - just press the BT pairing button when the Bluetooth® speakers/headphones are ready for the pairing, and once the connection is established, you don't need to do it again.
The TN-280BT-A3 also features a PHONO input via cable with an included RCA audio cable.

AUTHENTIC TWO-SPEED TURNTABLE
The high inertia aluminum die-cast platter is driven by a high torque DC motor for stable rotation for both 33-⅓ and 45 rpm. A soft felt mat further reduces vibration effectively. The high accuracy of the spindle is maintained by a polished Stainless steel Spindle and highly durable bronze spindle holder.

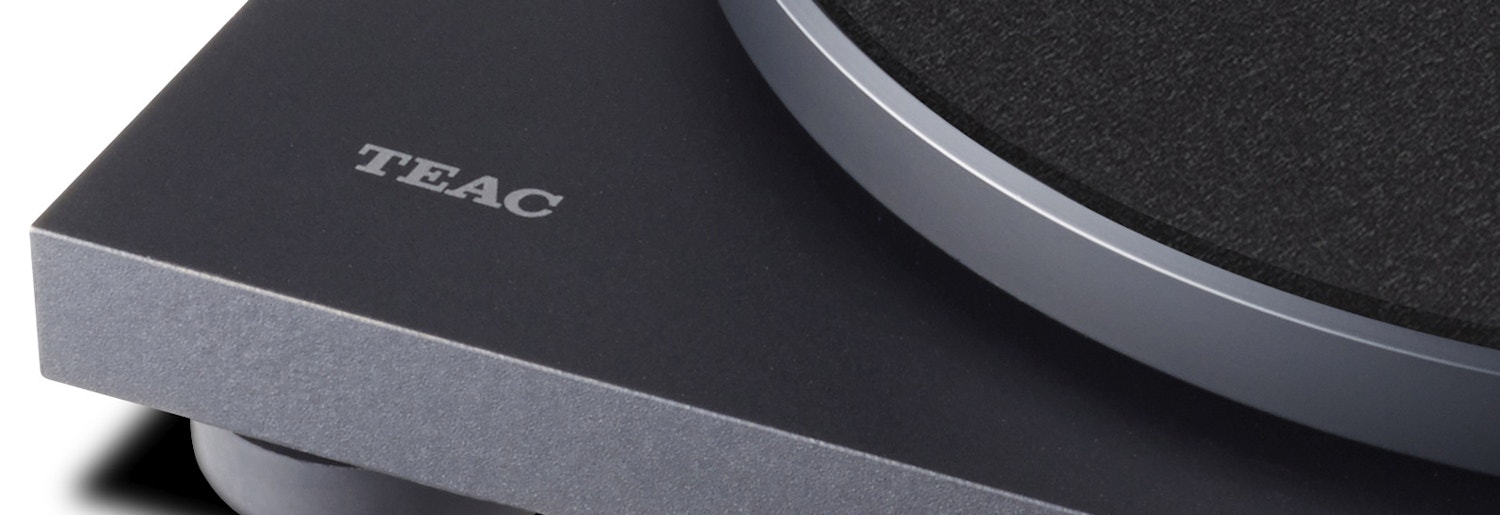

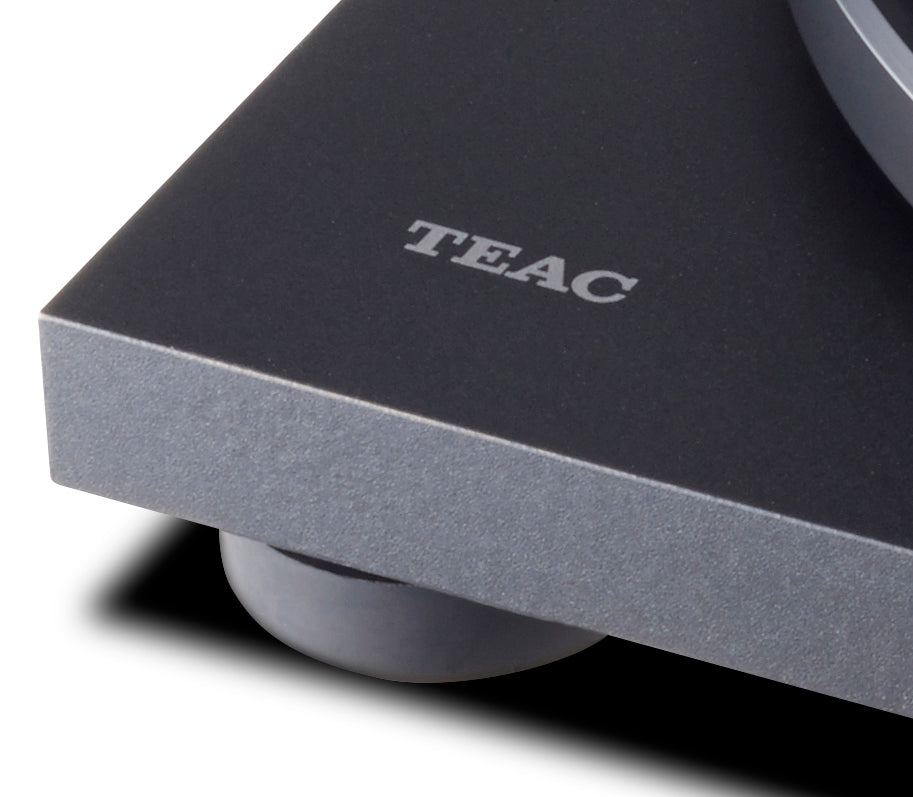

HIGH-DENSITY MDF CABINET CONSTRUCTION
Unlike other with plastic chassis, the heavy MDF cabinet minimizes vibrations and resonance for clearer sound.
BUILT-IN PHONO EQ AMPLIFIER
Enjoy vinyl playback with any amplifier. The TN-280BT-A3 supports both Phono and Line outputs that allow you to enjoy vinyl records with or without a phono equalizer.

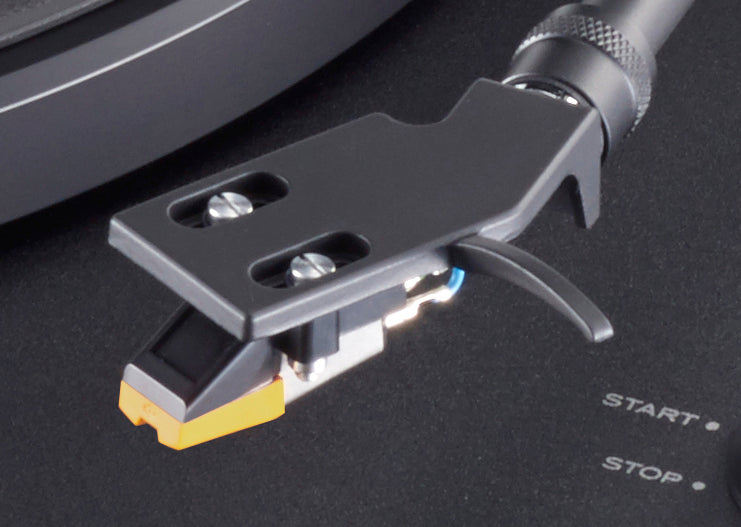

VM-Type Cartridge Pre-Installed for Quick Start
A straight tone-arm is employed for high tracking accuracy. The anti-skating mechanism also ensures accurate tracking of vinyl records. A VM-type (equivalent to MM-type) cartridge Audio-Technica AT3600L is installed at the factory.

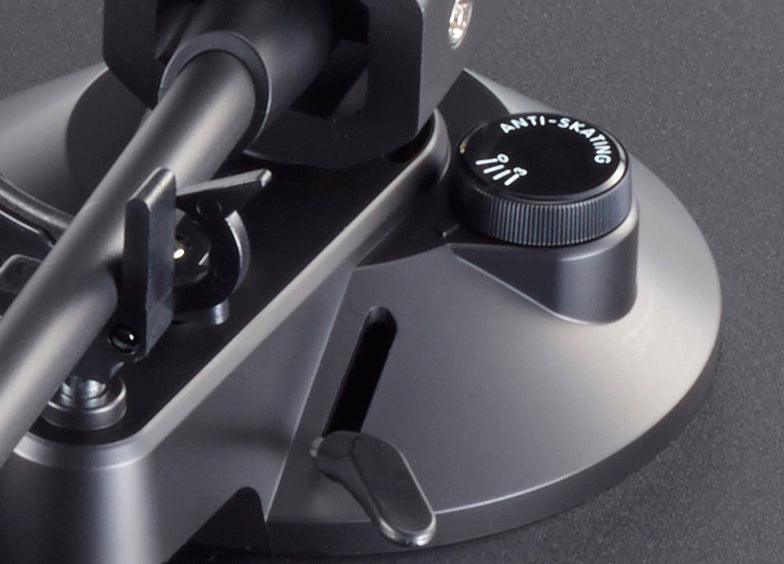

ANTI-SKATING ADJUSTMENT FOR ACCURATE TRACKING
The TN-280BT-A3’s anti-skating mechanism ensures accurate tracking.
SPECS
|
Turntable section |
|
|
Motor |
DC Motor |
|
Speed |
33 1/3 RPM, 45 RPM RPM |
|
Wow and Flutter |
0.2% |
|
Signal-to-Noise Ratio |
67dB or higher (A-weighted, 20kHz LPF) 60dB (unweighted, 20kHz, LPF) |
|
Platter |
Aluminum Diecast |
|
Diameter of Platter |
12", 30cm |
|
Tonearm section |
|
|
Type |
Static Balance, Straight |
|
Effective Arm Length |
8.8", 223mm |
|
Stylus Pressure Range |
0 to 5g |
|
Compatible Cartridge Range |
3.5 to 6.5g |
|
Anti-skating Adjustment |
Supported |
|
Cartridge section |
|
|
Type |
VM-type |
|
Stylus Shape |
Conical |
|
Frequency Response |
20Hz to 20kHz |
|
Channel Separation |
24dB at 1kHz, 15dB at 10kHz |
|
Channel Balance |
1.5dB |
|
Tracking Forcee |
3.5g±0.5 g |
|
Output Impedance |
47k ohms |
|
Output Voltage |
3.5mV |
|
Cartridge Weight |
5.0g±0.3 g |
|
Head-shell Weight |
10g (including nuts, screws and wires) |
|
Stylus Replacement |
audio-technica ATN3600L |
|
Analog Output section |
|
|
Connectors |
RCA Pin x 1 pair (Chrome-plated) |
|
Output Voltage |
|
|
PHONO |
4.2mV |
|
LINE |
120mV (–13dBV) |
|
Bluetooth® section |
|
|
Range |
Approx. 30ft. / 10 meters |
|
Supported Codec |
SBC |
|
General |
|
|
Power |
AC 100 to 240V, 50/60Hz |
|
Power Consumption |
< 1.5W (< 0.5W at Standby) |
|
Overall Dimensions (W x H x D) |
16.5" x 4.6" x 14.0" 420 x 117 x 356 mm |
|
Weight |
Approx. 10.8 lbs. 4.9 kg |
|
Accessories |
Rubber Sheet, EP Adapter, Counterweight, Head-shell (MM-type Cartridge audio-technica AT3600L installed), Turntable (Platter), Dust Cover, Rubber Feet for Dust Cover x2, Hinge x2, RCA Audio Cable, AC Adapter (GPE053A-120050-Z), Owner's Manual (including Warranty Card) |
|
Replacement Stylus |
Audio Technica ATN-3600L |
